Drinking straw making machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details

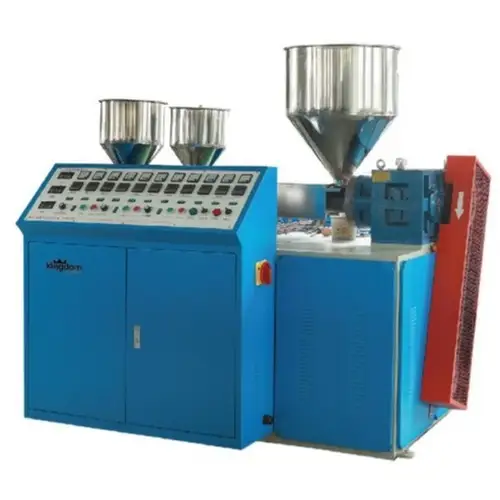

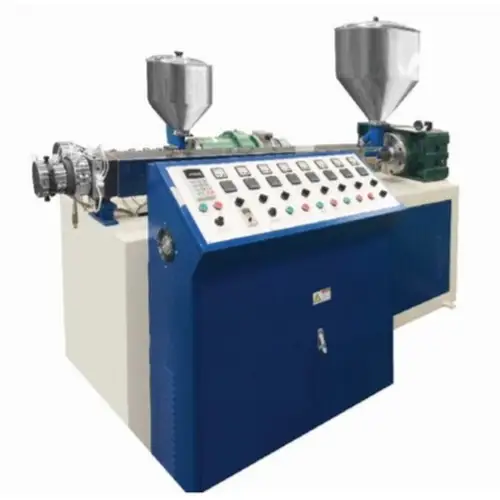

Drinking Straw Making Machine
The One Color Drinking Straw Machine utilizes polypropylene (PP) and masterbatch as its primary materials to produce transparent, single-color drinking straws. The manufacturing process involves several stages, including melting, extrusion, shaping, cooling, pulling, and cutting. This machinery consists of the main body, tooling, a water cooling system, and a cutting device.
Quality Assurance:
Smooth and quiet operation is ensured by precision-ground and hardened gears and bearings. The screw and barrel, constructed from Aluminum Chromolybdenum alloy steel, undergo stress relief for improved longevity. A nitrogen hardening treatment is applied to the die to extend its service life. The water tank and the cutting machine’s surface are fabricated from #304 stainless steel. Additionally, the screw in the main extruder is tailored to accommodate the designated plastic material.
drinking straw
PP drinking straw
| Model | KD-11 | KD-12 | KD-13 |
| Colors | 1color | 2colors | 3colors |
| Screw dia | 50mm | 50mm | 50mm |
| Motor | 11kw | 11kw | 11kw |
| Power | 380v 50Hz | 380v 50Hz | 380v 50Hz |
| Output | 25-35kg/hour | 25-35kg/hour | 25-35kg/hour |
| Product length | ≥50mm | ≥50mm | ≥50mm |
| Product dia. | Φ4～12mm | Φ4～12mm | Φ4～12mm |
| Stripes | Straight | Straight or Helical | Straight or Helical |
| Product thickness | 0.05-0.3mm | 0.05-0.3mm | 0.05-0.3mm |
| Weight | 900kgs | 1000kgs | 1200kgs |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Peru 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Machine Working Time | 24 hours * 7 days | ||
| Warranty | 1 year | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
PP drinking straw machines warehouse
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
Loading Drinking Straw Machine Warehouse into container
instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
