Blown Film Extrusion
Film Blowing Machine produce Polyethylene film,LDPE film,HDPE film,LLDPE film,PVA film,PLA film,Biodegradable Film.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details

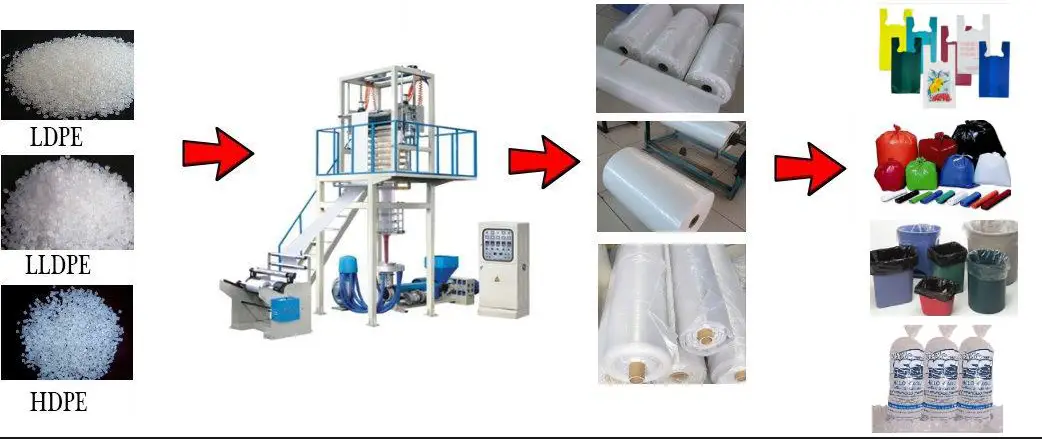

Blown Film Extrusion
The Blown Film Extrusion process utilizes a film blowing machine, featuring cylinders and screws constructed from high-grade alloy steel, which are nitrided and meticulously processed to achieve superior hardness and corrosion resistance.
Notable characteristics of Blown Film Extrusion equipment include:
High-quality screw and barrel components
Speed regulation through inverter control
Automatic temperature management
Single winder for film production
Compatibility with materials such as LDPE, HDPE, and LLDPE
Suitable for producing diverse plastic bags, including refuse bags
Film width options ranging from 100mm to 1200mm
Blown film machines are capable of generating films with widths between 150mm and 1200mm (5 to 48 inches), allowing customization to fulfill specific client needs. These machines are adept at manufacturing HDPE, LDPE, and recycled films.
blown film extrusion
Optional Equipments:
1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment
| Model | A50 | A55 | A65 | A65-1 |
| Material | HDPE, LDPE, LLDPE virgin raw material, recycled material, CaCO3 compound, biodegradable material, masterbatch and additives material | |||
| Film Color | Transparent,Black,Red,White,blue…bag color changed by mastbatch | |||
| Usage | Flexible packaging bags,T-shirt bag,Plastic Shopping Bag,trash bag,packing film,table cover,shrink film | |||
| Diameter of screw | φ50 | φ55 | φ65 | φ65 |
| Rcduced diameter of film | 100-600 mm | 200-800 mm | 300-1000 mm | 400-1200 mm |
| One side film Thickness | 0.01-0.10 mm | |||
| Max.capacity (Kg/h) | 35 | 50 | 65 | 80 |
| Ratio of Screw L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Screw material | 38CrMoAl | 38CrMoAl | 38CrMoAl | 38CrMoAl |
| Power of main motor(kw) | 7.5-11 | 11-15 | 18.5-22 | 22 |
| Power of Tracion | 1.1 kw | 1.1 kw | 1.5 kw | 1.5 kw |
| Heating Power(kw) | 11 | 13 | 19 | 21 |
| Delivery Day | 30-45 days | 30-45 days | 30-45 days | 30-45 days |
| Machine size (m) | 4.8×1.9×3.8 | 5.5×2.1×4.6 | 6.5×2.3×5.2 | 6.5×2.5×5.2 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Peru 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | |||
| Material Core Diamater | 76mm(3 inch) | |||
| Machine Working Time | 24 hours * 7 days | |||
| Warranty | 1 year | |||
| Optional Devices | Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder, double winder | |||
| Technical Assistance | Engineers available to service machinery overseas | |||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
